BIKES/ROAD/ARROW

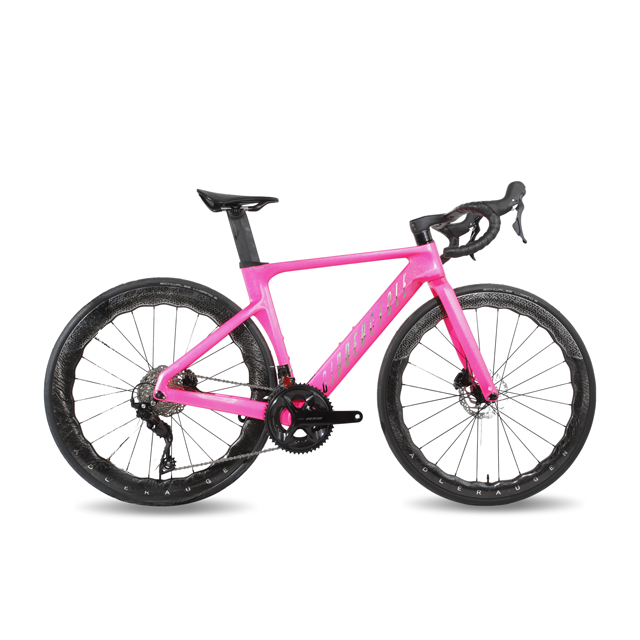

ARROW
￥：14800
The ARROW series is built for speed, defining a new standard in cycling. With its lightweight design and aerodynamic frame, every pedal stroke lets you feel the power of the wind. Whether you're navigating city streets or racing on the open road, ARROW is your ultimate companion for conquering the path.
| Component | Details |
|---|---|
| Size | S (476mm), M (503mm), L (533mm) |
| Frame | T700 + T800 reinforced carbon fiber aero frame, EPS molding, fully internal cable routing, press-fit bottom bracket, 12mm thru-axle |
| Fork | T700 + T800 reinforced carbon fiber fork, EPS molding, internal cable routing, 12mm thru-axle |
| Handlebar Set | T700 + T800 reinforced carbon fiber integrated handlebar, EPS molding, internal cable routing |
| Crankset | SHIMANO 105, 12-speed FC-R7100, 52-36T, 170mm |
| Drivetrain | SHIMANO 105, R7170 electronic shifting, 2x12-speed |
| Brake System | SHIMANO 105, R7170 hydraulic disc brakes |
| Bottom Bracket | Independently developed ceramic bearing bottom bracket (19 G5 precision silicon nitride ceramic balls, PF386 to T47 tool compatible) |
| Chain | SHIMANO 105, CN-M7100 |
| Cassette | SHIMANO 105, CS-R7100, 11-36T |
| Saddle | Italian saddle (SELLE ITALIA) |
| Handlebar Tape | Italian silicone handlebar tape (SELLE ITALIA) |
| Wheelset | German Adler Augen wavy rim ceramic bearing wheelset, 50mm front / 60mm rear |
| Tires | MAXXIS 700C x 28C tires with TPU ultra-light inner tubes |
| Weight | 9.1kg |
